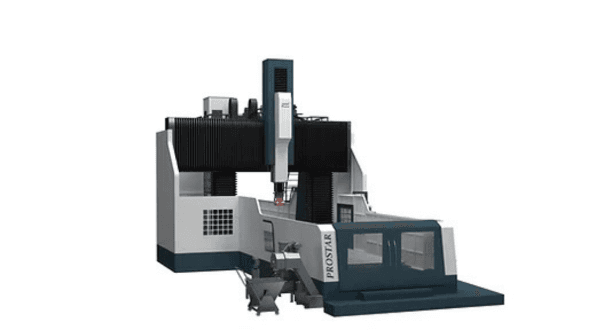

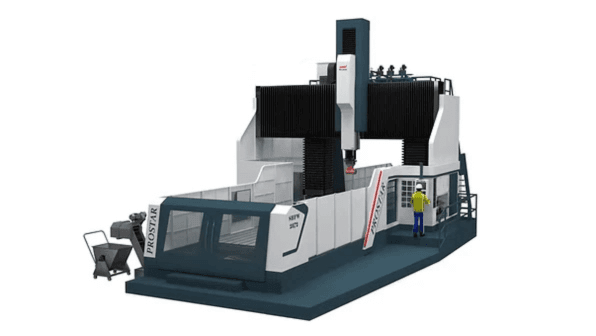

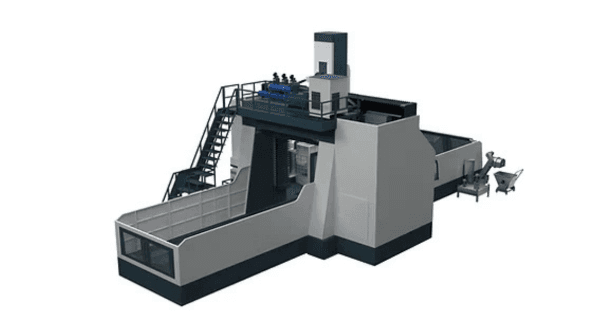

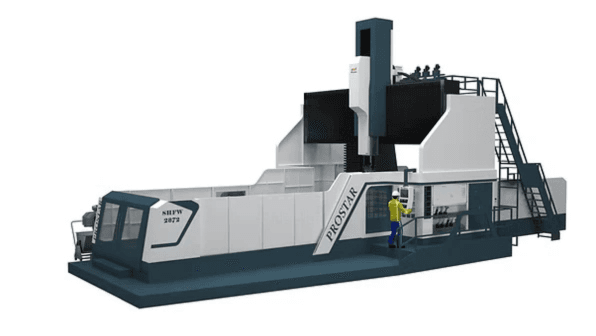

SHFW Series
SHF Series double column machining centres are the core products of PROSTAR. With full range of specification and customizable solutions, these machining centres become best-selling products and meet all requirements from Accuracy, rapid feed rate, high efficiency to heavy duty.
| MODEL | SHFW2542 | SHFW2552 | SHFW2562 |
|---|---|---|---|
| TRAVEL | |||
| Distance Between Columns | 2600 mm | ||
| X-Axis | 4200 mm | 5200 mm | 6200 mm |
| Y-Axis | 2520 + 700 mm | ||
| Z-Axis | 800 (opt. 1000/1200) mm | ||
| W-Axis | 1000 (opt. 1500) mm | ||
| Distance Spindle Nose To Table | 200-2000 (opt. up to 2700) mm | ||
| TABLE | |||
| Length | 4020 mm | 5020 mm | 6020 mm |
| Width | 2320 mm | ||
| T Slots (Width x Pitch x Nos.) | 28 x 245 x 10 mm | ||
| Max Loading | 18 ton | 20 ton | 22 ton |
| SPINDLE | |||
| Taper | BT50 | ||
| Speed | 4000 (opt. 6000 + 2 Stage Gearbox) rpm | ||
| Motor Output | 18.5/22 (opt. 22/26) kW | ||
| FEEDRATE | |||
| Rapid X-Axis | 10 m/min | 10 m/min | 10 m/min |
| Rapid Y-Axis | 15 m/min | ||
| Rapid Z-Axis | 12 m/min | ||
| Rapid W-Axis | 6 m/min | ||
| Cutting | 6 mm/min | ||
| ACCURACY | |||
| Positioning | ±0.015 mm | ||
| Repeatability | ±0.005 mm | ||
| TOOLING | |||
| Magazine | 24 nos. | ||
| Max Dia | 125 mm | ||
| Max Length | 400 mm | ||
| Max Weight | 20 kg | ||
| OTHERS | |||
| Guideways | Linear Guideways | ||
| Controller | Mitsubishi (opt. Siemens / Fanuc / Fagor) | ||
| MACHINESIZE | |||
| Length | 10500 mm | 12800 mm | 15100 mm |
| Width | 4850 mm | ||
| Height | 5800 mm | ||
